Mini-88 Series

Mini-88

Video Online

Servo turret increases turning efficiency.
Chip conveyor offers easy chip removal.
Compact part catcher saves you space.
Gang type tools make tool change easily. Optional servo turret increases machining efficiency.
The spindle can be equipped with collet chuck or 3 jaws chuck. Users may choose the optimal choice.

Introduction

Meet our Gang type Mini CNC Lathe, engineered for compact spaces without compromising on performance.Featuring a fixed head and can choose with automated design, this machine excels in precision and speed.Its integrated robot system further enhances efficiency, making it the go-to solution for small parts manufacturing.Space-saving, highly efficient, and incredibly precise—our Mini CNC Lathe is the perfect fit for your production needs.

Examples

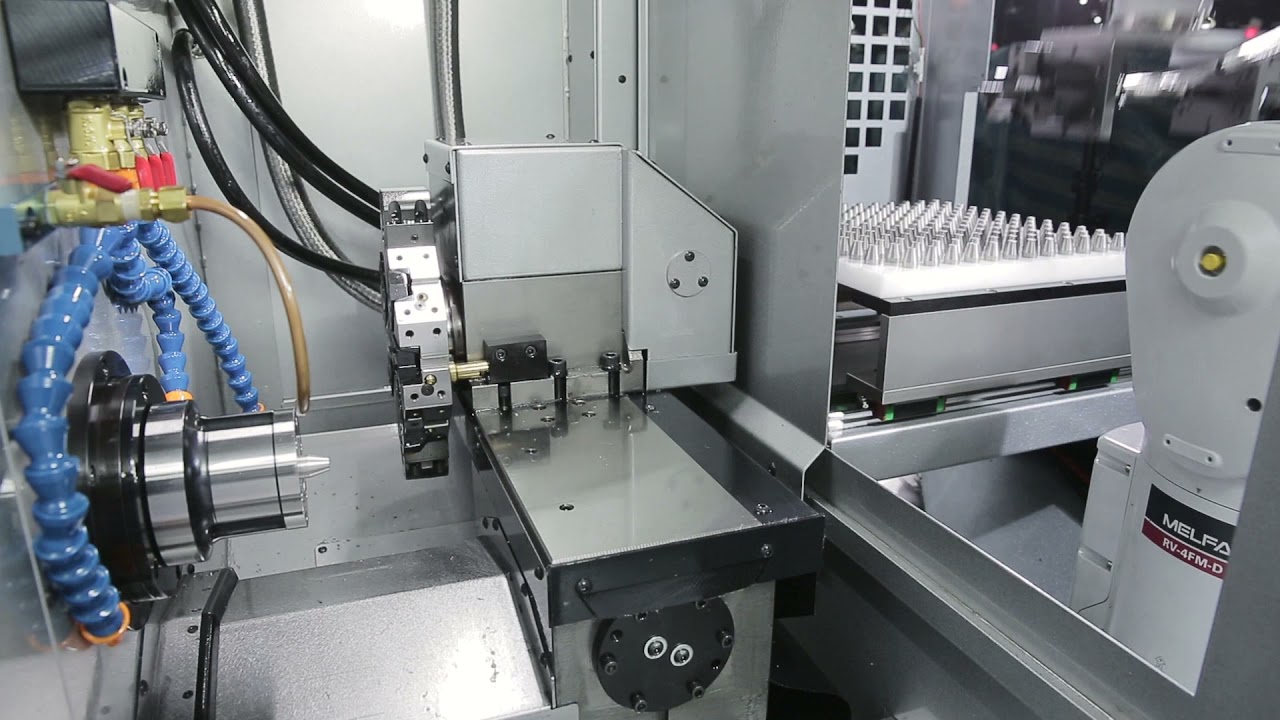

Automatic Loading / Unloading
Device Saves Money & Manpower

Standard Accessories

Model 25 Collet Chuck (161E) - MINI-88
Model 20 Collet Chuck (148E) - MINI-88-20
Foot Chuck-Swutch (1 pc) - MINI-88
Work Light (1 pc)
Tool and Tool Box (1 set)
Coolant Device (1 set)
Base Blocks (4 pcs)
Tool Holder Up Base - MINI-88 (2 pcs) | MINI-88-20 (1 pc)
Tool Holder Down Base - MINI-88 (2 pcs) | MINI-88-20 (1 pc)
I.D. Stationary Tool Holder - MINI-88 (4 pcs) | MINI-88-20 (1 set)
Tool Holder Bushing (2 pcs / each) - MINI-88 (6/8/10/12/16 mm) | MINI-88-20 (6/8/10/12 mm)

Optional Accessories

Servo 8-Position Turret (1 pc) (Only for MINI-88)
3 Jaws Chuck (1 pc) (Only for MINI-88)
Part Catcher (1 set)
Chip Conveyor (1 unit)
Chip Bucket (1 unit)

Specification

Items	MINI-88	MINI-88-20
Max. Machining Dia.	60 mm (with chuck) / 26 mm (with collet chuck)	21 mm
Max. Machining Length	Bar diameter x 3	Bar diameter x 3
Swing Over Cross Slide	120 mm	120 mm
Max. Cross Trave (X Axis)	170 mm	170 mm
Max. Longitudinal Travel (Z Axis)	170 mm	170 mm
Bore of Spindle	34 mm	23 mm
Max. Bar Feeding Dia.	26 mm	21 mm
Spindle Nose	Ø85 mm	-
Hydraulic Chuck	4"	-
Spindle Motor	2.2 kW / 3 H.P.	2.2 kW / 3 H.P.
Spindle Speed Range	100-5000 r.p.m.	100-8000 r.p.m.
Rapid Traverse Speed (X & Z Axis)	15 m/min	15 m/min
Min. Input Unit	0.001 mm	0.001 mm
Cutting Tool Size	16 mm	16 mm
Max. Bore Size of Tool	Ø20 mm	Ø16 mm
Coolant Pump Motor	1/4 H.P.	1/4 H.P.
Machine Dimension (L x W x H)	1200 x 1000 x 1500 mm	1100 x 1000 x 1500 mm
Machine Net Weight	1058 kgs	1008 kgs

* We reserve the rights to change the design without any prior notification.
