Introduction

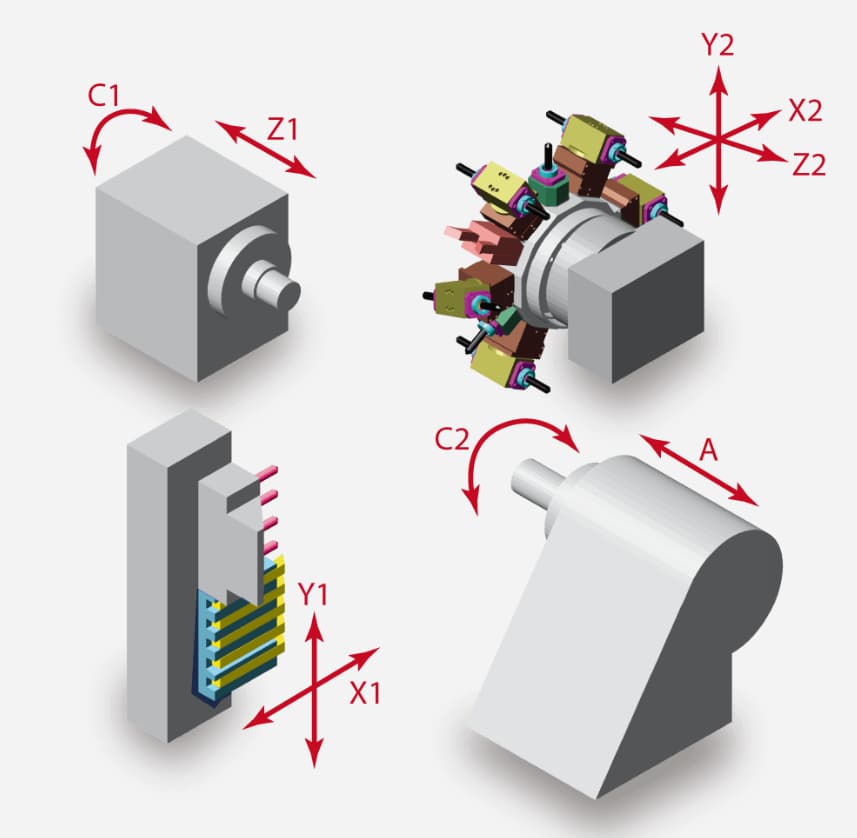

Diamond CSL 42-2Y offers up to 9 axes complex manufacturing capability using the most advanced multi-axes control system.
Diamond CSL 42-2Y
42-2Y
- Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.

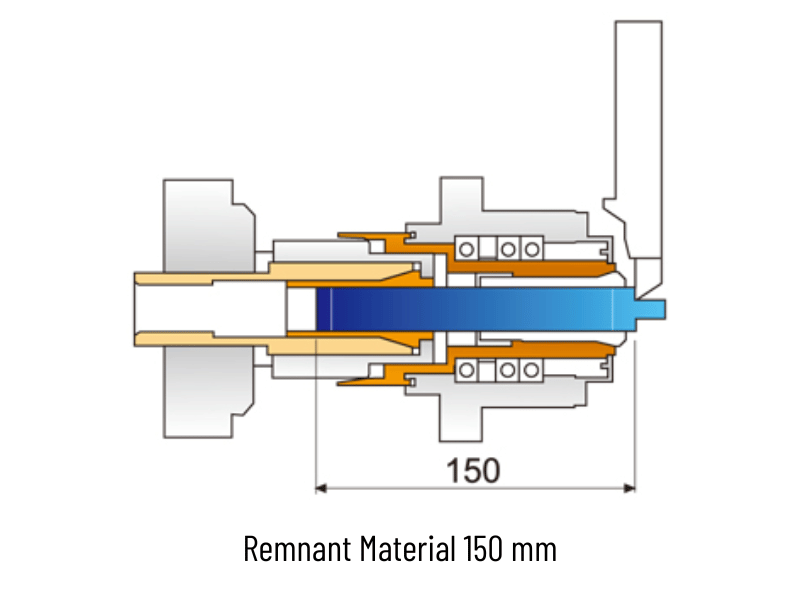

Using Live Bushing with Guide Bush

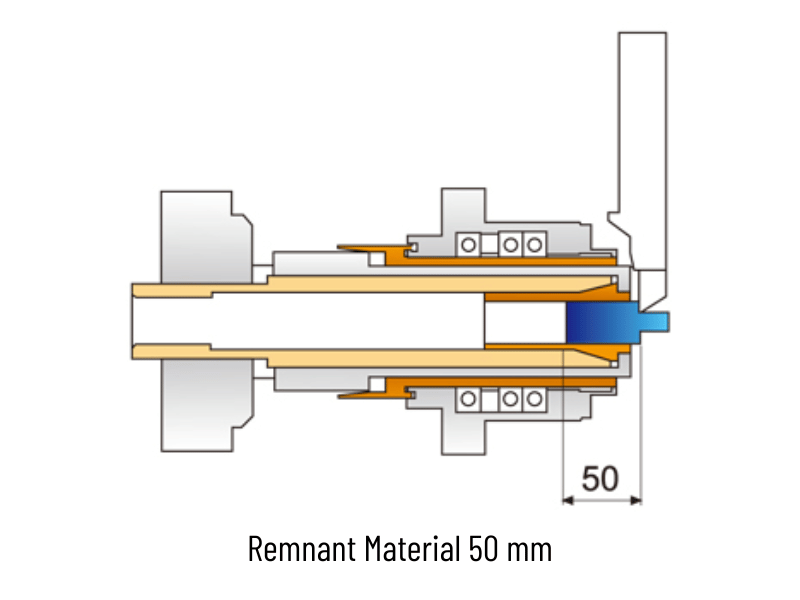

Using Rough Material Bushing without Guide Bush

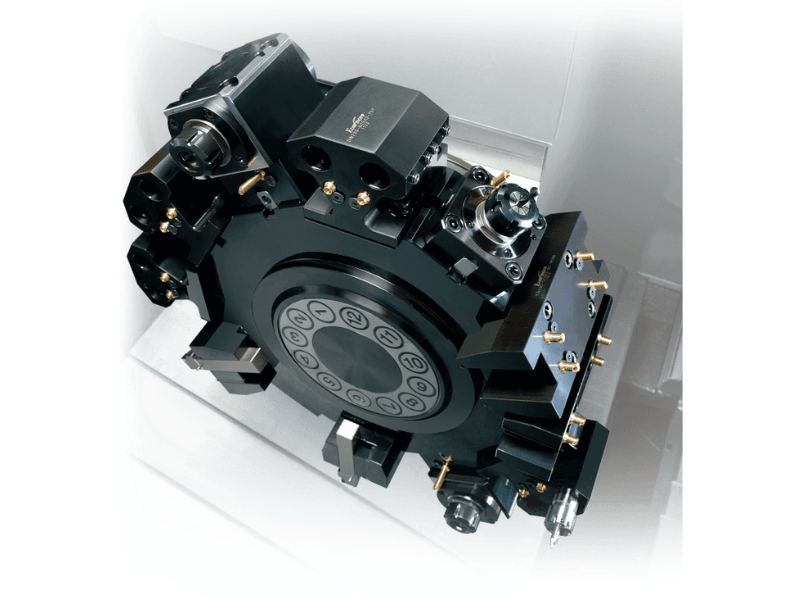

12 Stations Power Turret Can Do Double-side Processing

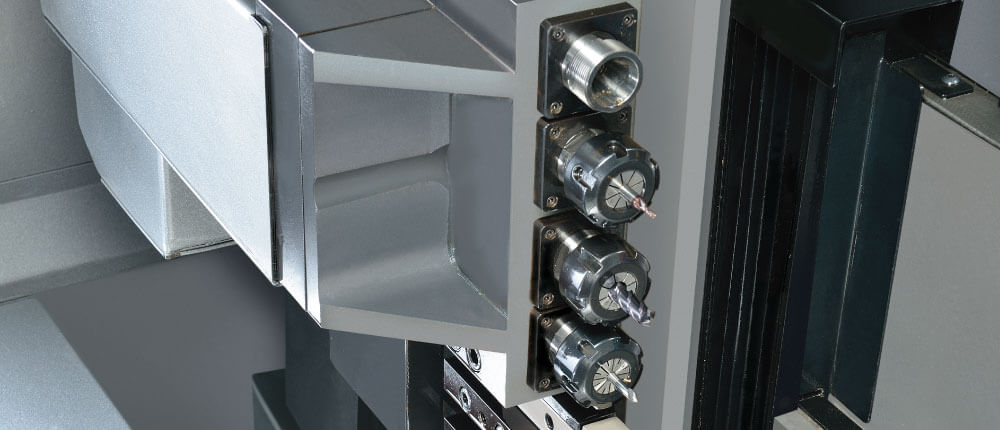

4 pcs Cross Working Driven Tool Holder

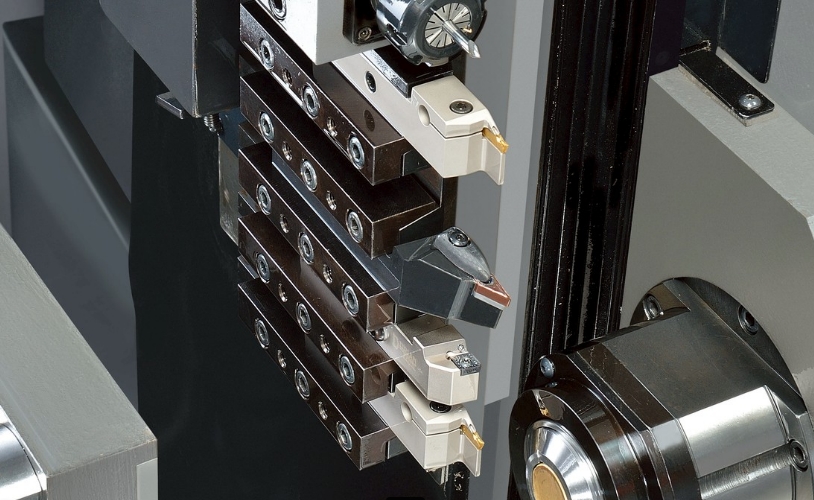

5 pcs O.D. Turning Tool Holder
Standard Accessories
- Main spindle
- Sub-spindle
- CS Axis
- Working Light
- Coolant System
- Part off Detective Sensor
- Live Bushing
- Chip Conveyer
- Chip Bucket
- Part Catcher
- 5 pcs O.D. Turning Tool Holder
- 4 pcs Cross Working Driven Tool Holder
- 4 pcs Double Side Turning Holder (Turret)
- 4 pcs Double Boring Bar Holder (Turret)
- 2 pcs Axial Drilling and Milling Head (Turret)
- 2 pcs Radial Drilling and Milling Double Head (Turret)
- Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Optional Accessories
- Double Side Turning Holder (Turret)
- Double Boring Bar Holder (Turret)
- Axial Drilling And Milling Head (Turret)
- Radial Drilling And Milling Double Head (Turret)
Specification
| Items | Y1 (System 1) | Y2 (System 2) |
|---|---|---|
| Working Range | ||
| Max. Machining Dia. | Ø42 mm | Ø42 mm |
| Max. Machining Length | 280 mm | |
| Max. Drilling Capacity | Ø30 mm | Ø30 mm |
| Max. Tapping Capacity | M16 | M16 |
| Tooling System | ||
| O.D. Turning Tool | 5 | |
| O.D. Turning Tool Dimension | □20x20x120 | |
| Cross Tool (power – driven tool) | 4 | |
| Cross Tool Dimension | 16 mm (ER25) | |
| Cross Tool Speed | 200~6000 rpm | |
| Power Turret | ||
| Power - driven Tool / Station | 12 | |
| O.D. Tool Dimension | □20 x 20 | |
| I.D. Tool Dimension | Ø25 mm | |
| Max. O.D. Turning Tool / Station | 6 | |
| Max. I.D. bore Tool / Station | 6 | |
| Power – driven Tool Dimension | 16 mm (ER25) | |
| Power – driven Tool Speed | 200~4000 rpm | |
| Max. Radial Mill / Drill Tool / Station | 12 | |
| Max. Axial Mill / Drill Tool / Station | 12 | |
| Spindle | ||
| Spindle Hole Dia. | Ø42 mm | |
| Spindle Speed | 200~6000 rpm | |
| Sub-spindle | ||
| Sub-spindle Hole Dia. | Ø42mm | |
| Sub-spindle Speed | 200~6000rpm | |
| Max. Length for Front Ejection | 120 mm | |
| Sub-spindle Max. Drilling Dia. | Ø30 mm | |
| Sub-spindle Max. Tapping Dia. | M16 | |
| Rapid Speed | ||
| A axis | 30m/min | |
| X1, Z1, Y1 axes | 30m/min | |
| X2, Z2, Y2 axes | 30m/min | |
| Travel | ||
| A axis | 460 mm | |
| X1 axis | 45 mm | |
| Z1 axis | 300 mm | |
| Y1 axis | 360 mm | |
| X2 axis | 140 mm | |
| Z2 axis | 470 mm | |
| Y2 axis | 170 mm | |
| Motors | ||
| Main Spindle | 7.5 kW | |
| Sub-spindle | 7.5kW | |
| Y1, Y2 axes | 1.5kW | 2.2kW |
| A, X1, Z1, X2, Z2 axes | 1.0 kW | 1.0 kW |
| Rotary Tools | 2.2 kW | 2.2 kW |
| Coolant Pump | 1 HP | 1 HP |
| Lubrication | 25 W | 25 W |
| Machine Dimensions | ||
| Center Height | 960 mm | |
| Weight | 6380 kgs | |
| Dimension | 3000 x 1800 x 1980 mm | |
| Air | ||
| Air Pressure | 5kg/cm | |
| Air Supply | 10L/min | |
* We reserve the rights to change the design without any prior notification.
