Diamond CSL 42-2Y II

42-2Y II

Diamond CSL 42-2Y II
  • Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.
Introduction

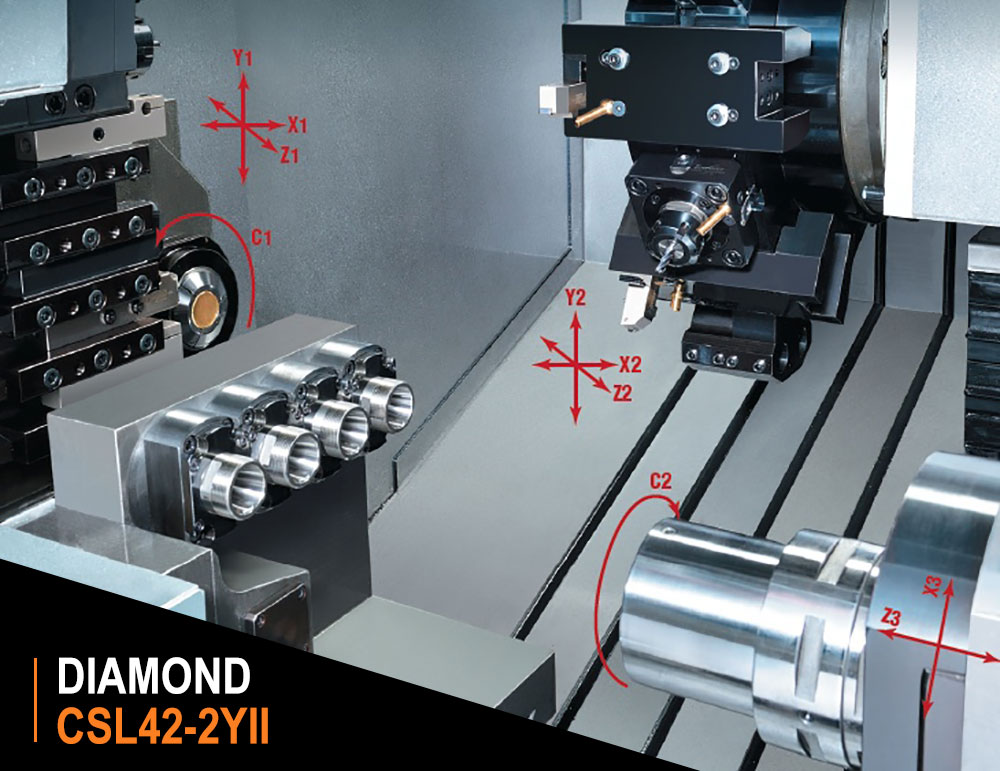

Diamond CSL 42-2YII is upgraded with MITSUBISHI 830 controller which possessed control axis superimposition function. It offers up to 10 axes complex manufacturing capability and it can simultaneously to process at 3 channels.

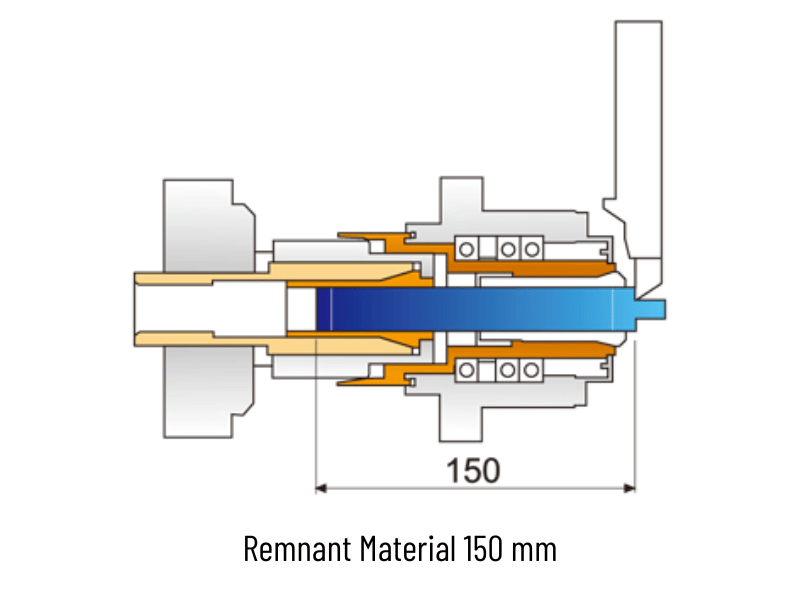

Using Live Bushing with Guide Bush

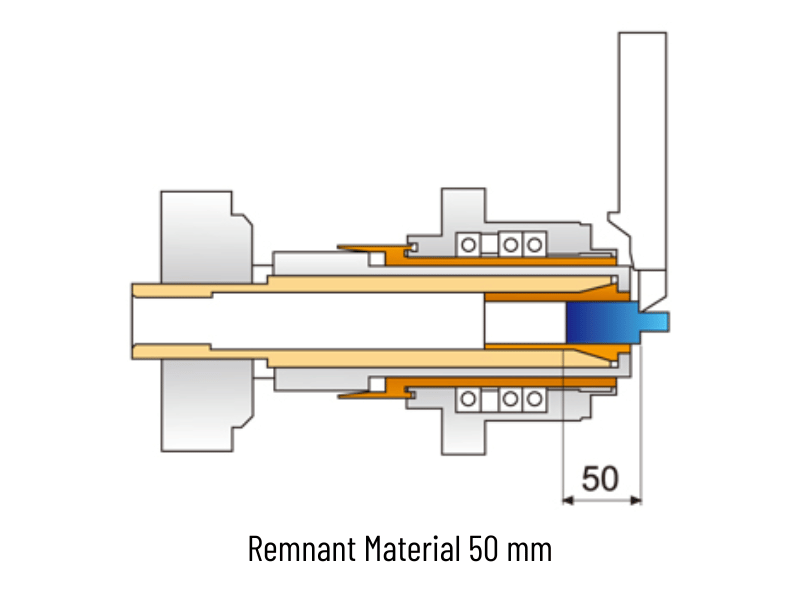

Using Rough Material Bushing without Guide Bush

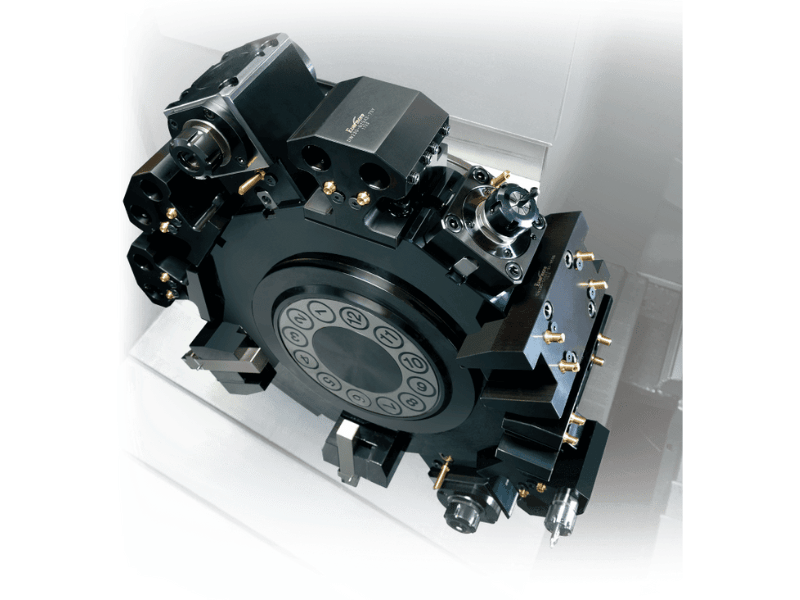

12 Stations Power Turret Can Do Double-side Processing

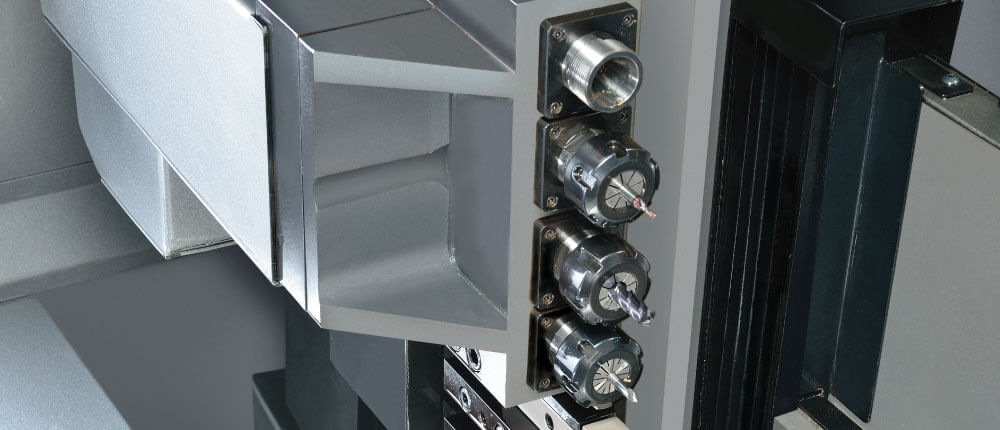

4 pcs Cross Working Driven Tool Holder

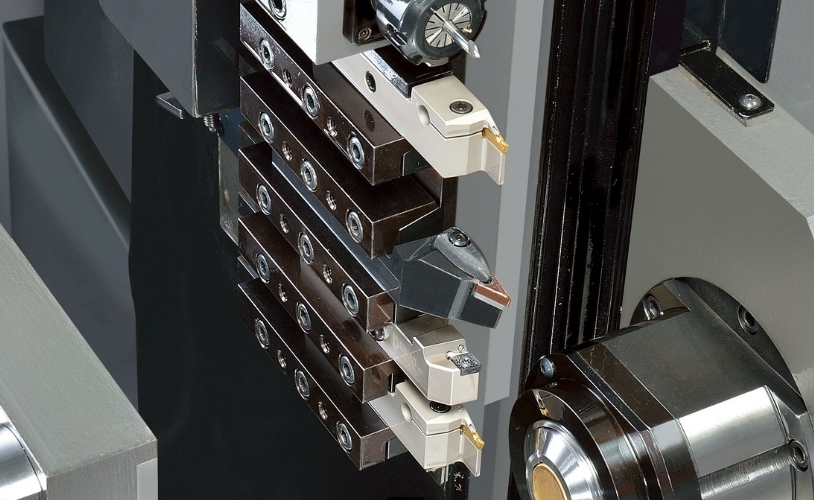

5 pcs O.D. Turning Tool Holder

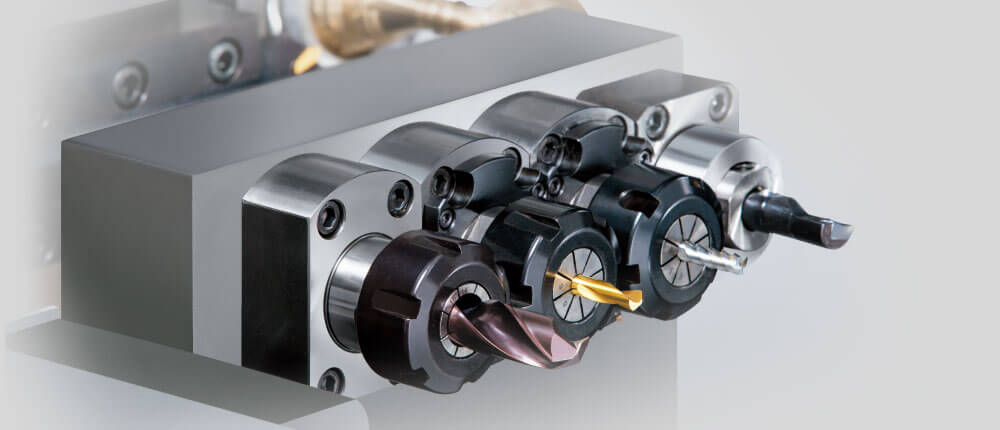

4 pcs Back Working Driven Tool Holder
Standard Accessories
  • Main spindle
  • Sub-spindle
  • CS Axis
  • Working Light
  • Coolant System
  • Part off Detective Sensor
  • Live Bushing
  • Chip Conveyer
  • Chip Bucket
  • Part Catcher
  • 5 pcs O.D. Turning Tool Holder
  • 4 pcs Cross Working Driven Tool Holder
  • 4 pcs Double Side Turning Holder (Turret)
  • 4 pcs Double Boring Bar Holder (Turret)
  • 2 pcs Axial Drilling and Milling Head (Turret)
  • 2 pcs Radial Drilling and Milling Double Head (Turret)
  • 4 pcs Back Working DrivenTool Holder
  • Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Optional Accessories
  • Double Side Turning Holder (Turret)
  • Double Boring Bar Holder (Turret)
  • Axial Drilling And Milling Head (Turret)
  • Radial Drilling And Milling Double Head (Turret)
Specification
ItemsY1 (System 1)Y2 (System 2)(System 3)
Working Range
Max. Turning Dia.Ø42 mmØ42 mm
Max. Machining Length280 mm
Max. Drilling CapacityØ30 mmØ30 mm
Max. Tapping CapacityM16M16
Tooling System
O.D. Turning Tool5
O.D. Turning Tool Dimension□20x20x120
Cross Tool (power – driven tool)4
Cross Tool Dimension16 mm (ER25)
Cross Tool Speed200~6000 rpm
Back I.D. Tool4
Back I.D. Tool DimensionØ25 mm
Back Working Driven Tool4
Back Working Driven Tool Dimension16 mm (ER25)
Back Working Driven Tool Speed200~6000 r.p.m.
Power Turret
Power - driven Tool / Station12
O.D. Tool Dimension□20 x 20
I.D. Tool DimensionØ25 mm
Max. O.D. Turning Tool / Station6
Max. I.D. bore Tool / Station6
Power – driven Tool Dimension16 mm (ER25)
Power – driven Tool Speed200~4000 rpm
Max. Radial Mill / Drill Tool / Station12
Max. Axial Mill / Drill Tool / Station12
Spindle
Spindle Hole Dia.Ø42 mm
Spindle Speed200~6000 rpm
Sub-spindle
Sub-spindle Hole Dia.Ø42mm
Sub-spindle Speed200~6000rpm
Max. Length for Front Ejection120 mm
Sub-spindle Max. Drilling Dia.Ø30 mm
Sub-spindle Max. Tapping Dia.M16
Rapid Traverse Speed
X1, Z1, Y1, X2, Z2, Y2, X3, Z3 Axes30 m/min30m/min30 m/min
Travel
X1 axis45 mm
Z1 axis300 mm
Y1 axis360 mm
X2 axis140 mm
Z2 axis470 mm
Y2 axis170 mm
X3 Axis245 mm
Z3 Axis450 mm
Motors
Main / Sub-Spindle7.5 kW7.5 kW
Y1, Y2 axes1.5kW2.2kW
X1, Z1, X2, Z2, X3, Z3 Axes1.0 kW1.0 kW1.0 kW
Rotary Tools2.2 kW2.2 kW2.2 kW
Coolant Pump1 HP1 HP
Lubrication25 W25 W
Machine Dimensions
Center Height990 mm
Weight6480 kgs
Dimension3600 x 2650 x 2130 mm
Air
Air Pressure5kg/cm
Air Supply10L/min
