Introduction

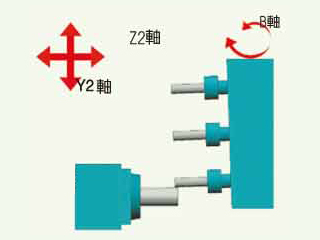

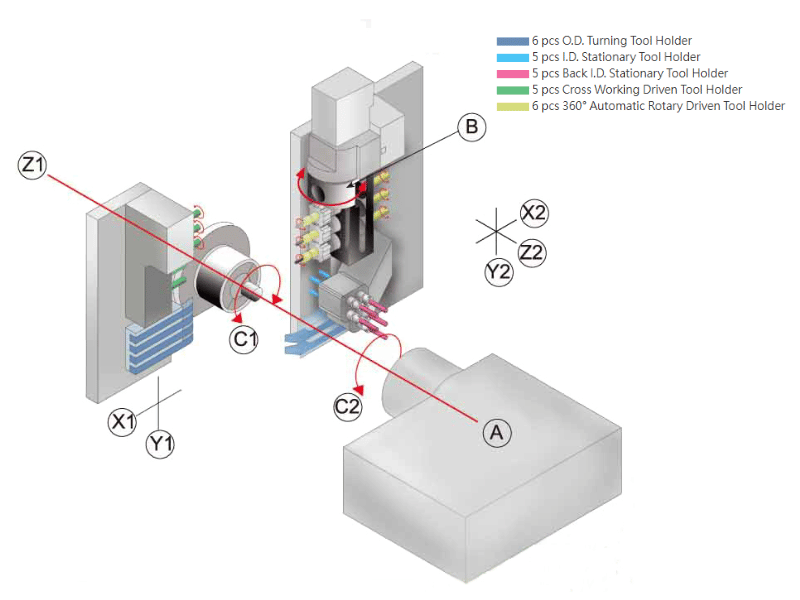

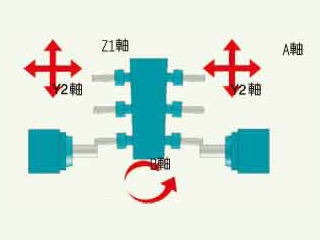

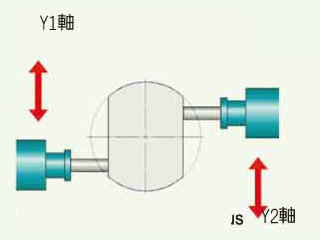

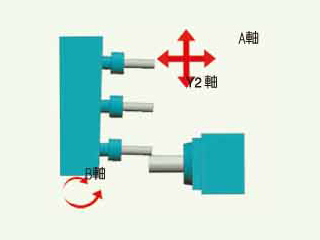

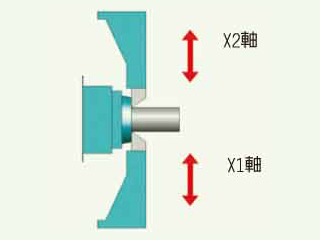

Po Ly Gim introduces the smallest Swiss type CNC lathe: the Diamond CSL 12-2Y. With a 12mm bar capacity and up to 10 working axes, the Diamond CSL 12-2Y is not only compact in size, it also has superb capabilities. Among its unique features are the two Y-axes and six fully programmable (360°) tools that work on both the main and sub-spindle, making the Diamond CSL 12-2Y suitable for producing small electronic parts. It is also capable of doing milling and turning.
Specification
| Items | Diamond CSL 12-2Y | Diamond CSL 12-2Y | Diamond CSL 16-2Y | Diamond CSL 16-2Y |
|---|
| System | Y1 (System 1) | Y2 (System 2) | Y1 (System 1) | Y2 (System 2) |
| Working Range |
|---|
| Max. Machining Dia. | Ø12.7 mm | | Ø16.5 mm | |
| Max. Machining Length Per Chucking | 143 mm | | 143 mm | |
| Max. Drilling Capacity | Ø7 mm | | Ø10 mm | |
| Max. Tapping Capacity | M6 | | M8 | |
| Tooling System |
|---|
| O.D. Turning Tool | 4 | 2 | 4 | 2 |
| O.D. Turning Tool Dimension | □10 x10 x 100 | □10 x10 x 100 | □10 x 10 x 100 | □10 x 10 x 100 |
| I.D. Tool | | 5 | | 5 |
| I.D. Tool Dimension | | 7 mm (ER11) | | 10 mm (ER16) |
| Cross Tool (Power - Driven Tool) | 5 | | 5 | |
| Cross Tool Dimension | 7 mm (ER11) | | 10 mm (ER16) | |
| Cross Tool Speed | 200~6000 rpm | | 200~6000 r.p.m. | |
| 360° Automatic Rotary Driven Tool | | 6 | | 6 |
| 360° Automatic Rotary Driven Tool Dimension | | 10 mm (ER16) x3
7 mm (ER11) x3 | | 10 mm (ER16) x3
7 mm (ER11 )x3 |
| 360° Automatic Rotary Driven Tool Speed | | 200~6000 r.p.m. | | 200~6000 r.p.m. |
| Spindle |
|---|
| Spindle Hole Dia. | Ø13 mm | | Ø17 mm | |
| Spindle Speed | 200~10,000 r.p.m. | | 200~10,000 r.p.m. | |
| Sub-spindle |
|---|
| Sub-spindle Hole Dia. | | Ø13 mm | | Ø17 mm |
| Sub-spindle Speed | | 200~10,000 r.p.m. | | 200~10,000 r.p.m. |
| Sub-Spindle Max. Drilling Capacity. | | Ø7 mm | | Ø10 mm |
| Sub-Spindle Max. Tapping Capacity. | | M6 | | M8 |
| Rapid Speed |
|---|
| A axis | | 30m/min | | 30 m/min |
| X1, Z1 Axes | 30m/min | | 30 m/min | |
| Y1 Axis | 30 m/min | | 30 m/min | |
| X2, Y2, Z2 Axes | | 30m/min | | 30 m/min |
| Motors |
|---|
| Main Spindle | 2.2 kW | | 2.2 kW | |
| Sub-Spindle | | 2.2 kW | | 2.2 kW |
| Y1, Y2 axes | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| A, X1, Z1, X2, Z2 axes | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| B Axis | | 1.0 kW | | 1.0 kW |
| Rotary Tools / B Axis Rotary Tools | 1.0 kW | 1.0 kW | 1.0 kW | 1.0 kW |
| Coolant Pump | 1 HP | | 1 HP | |
| Lubrication | 25 W | | 25 W | |
| Machine Dimensions |
|---|
| Center Height | 1050 mm | | 1050 mm | |
| Weight | 2580 kg | | 2680 kg | |
| Dimension | 2500 x 1200 x 1800 mm | | 2500 x 1200 x 1800 mm | |
| Air |
|---|
| Air Pressure | 5kg/cm | | 5 kg /cm | |
| Air Supply | 10L/min | | 10 L / min | |
* We reserve the rights to change the design without any prior notification.
